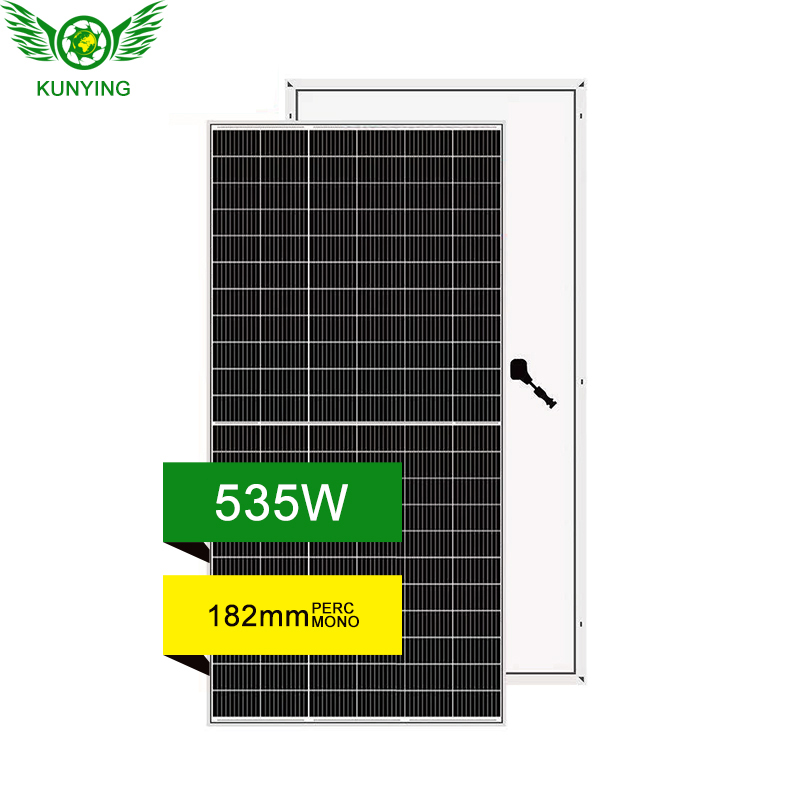

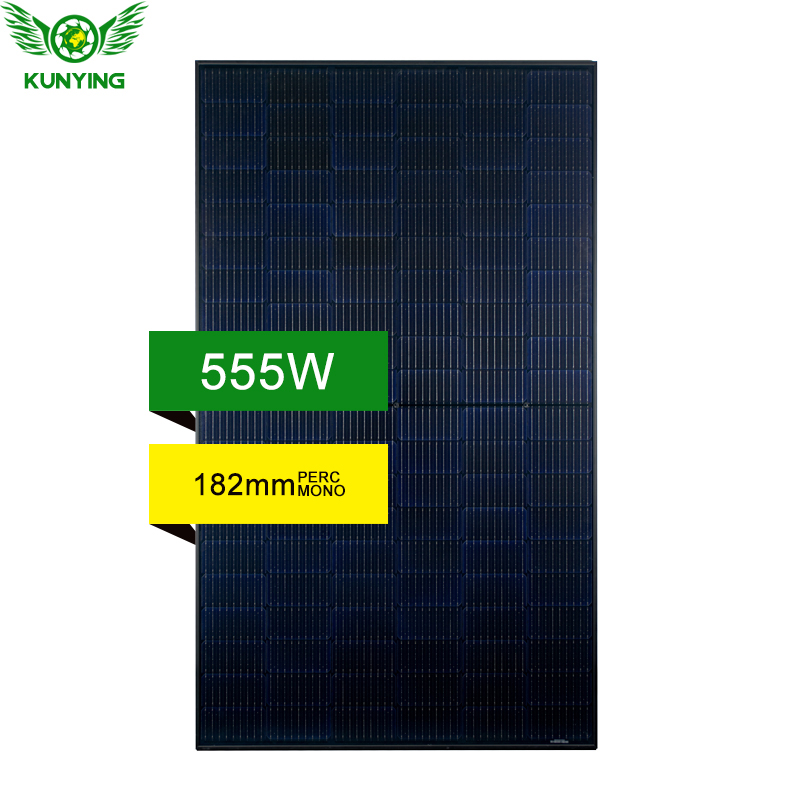

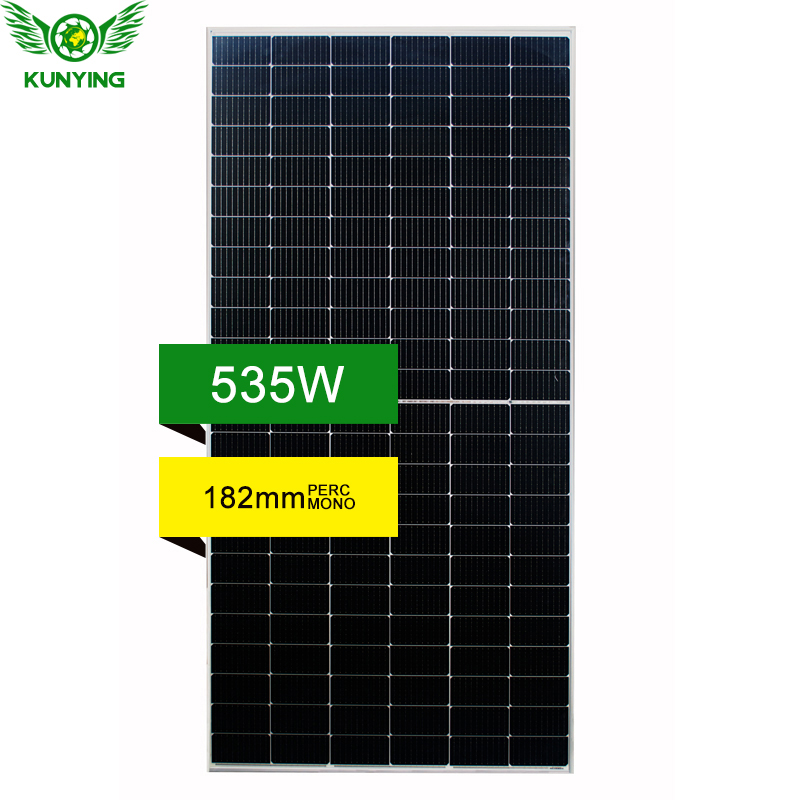

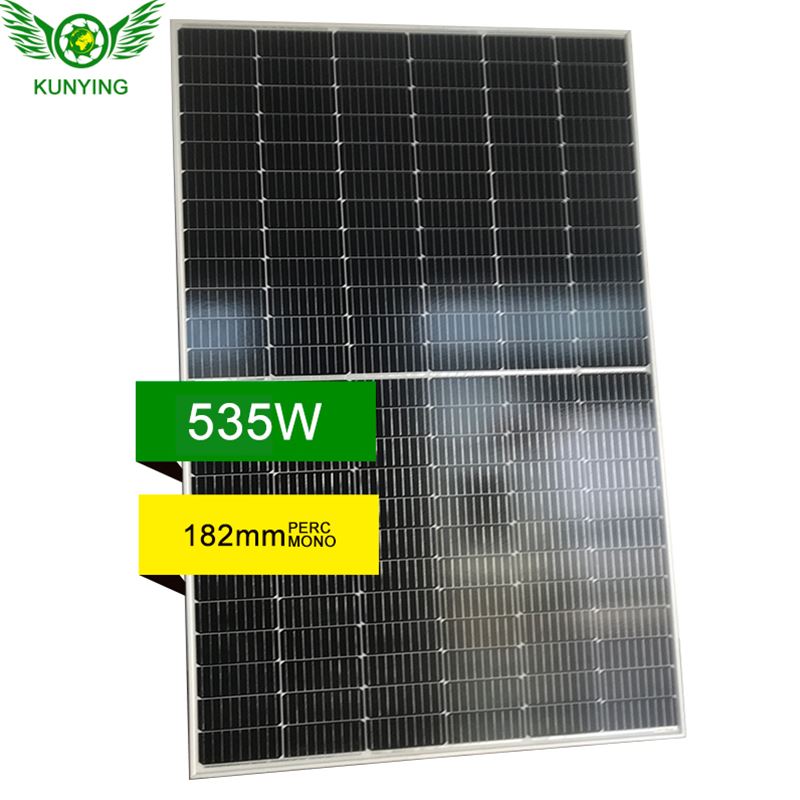

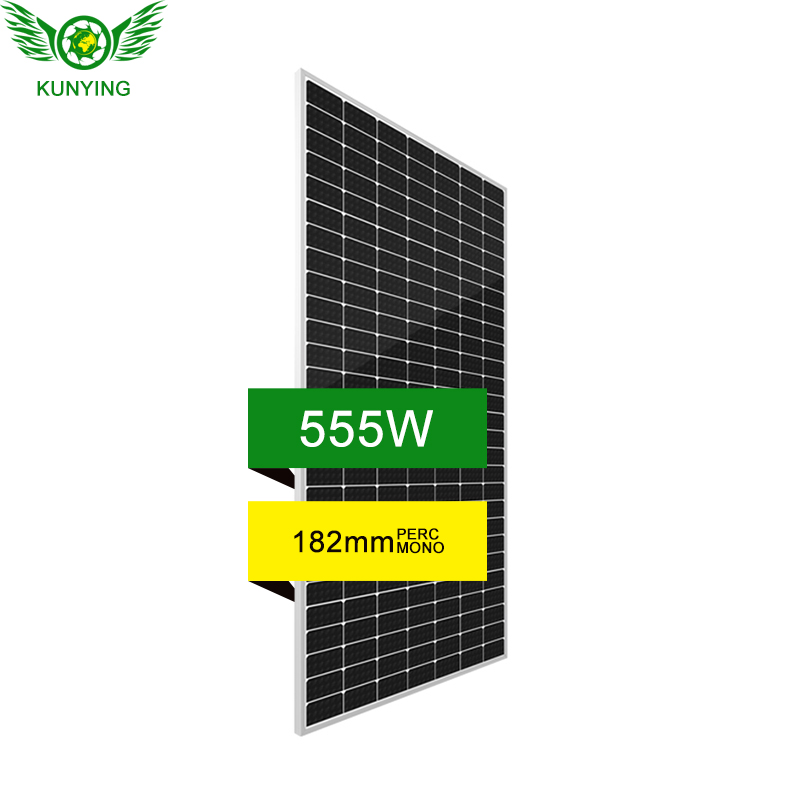

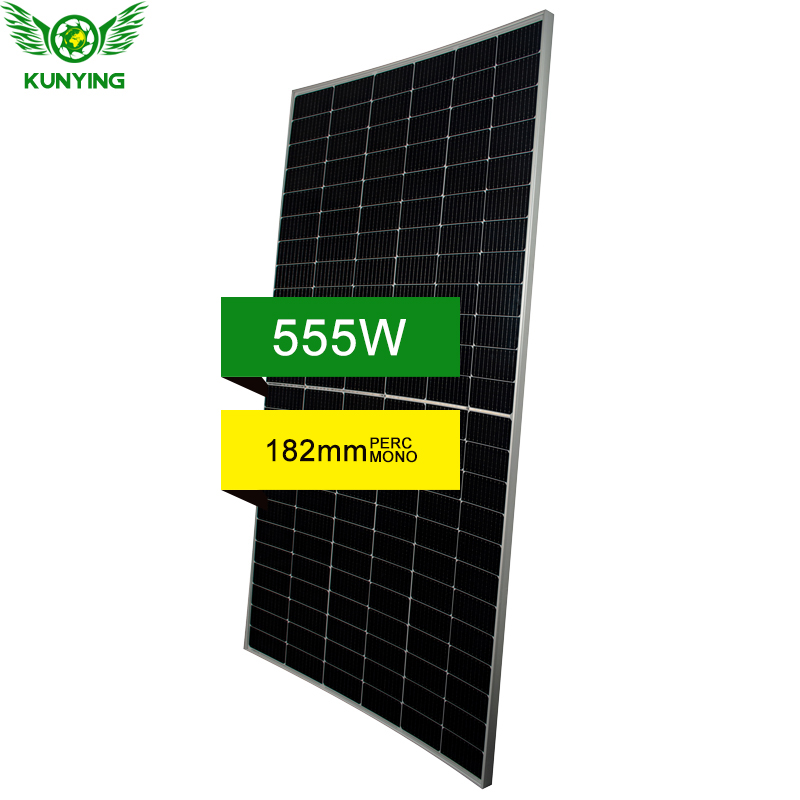

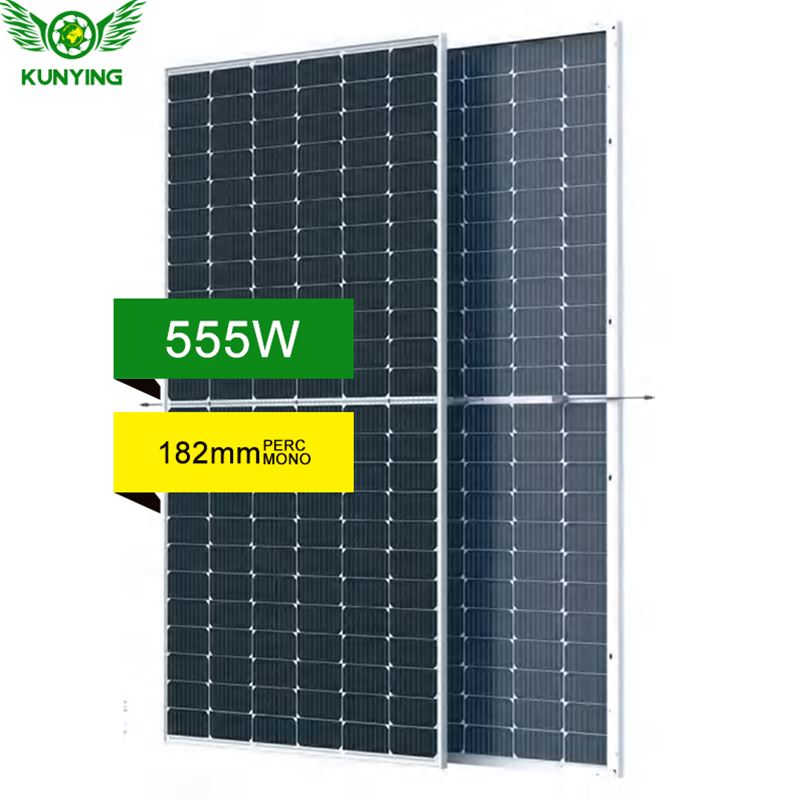

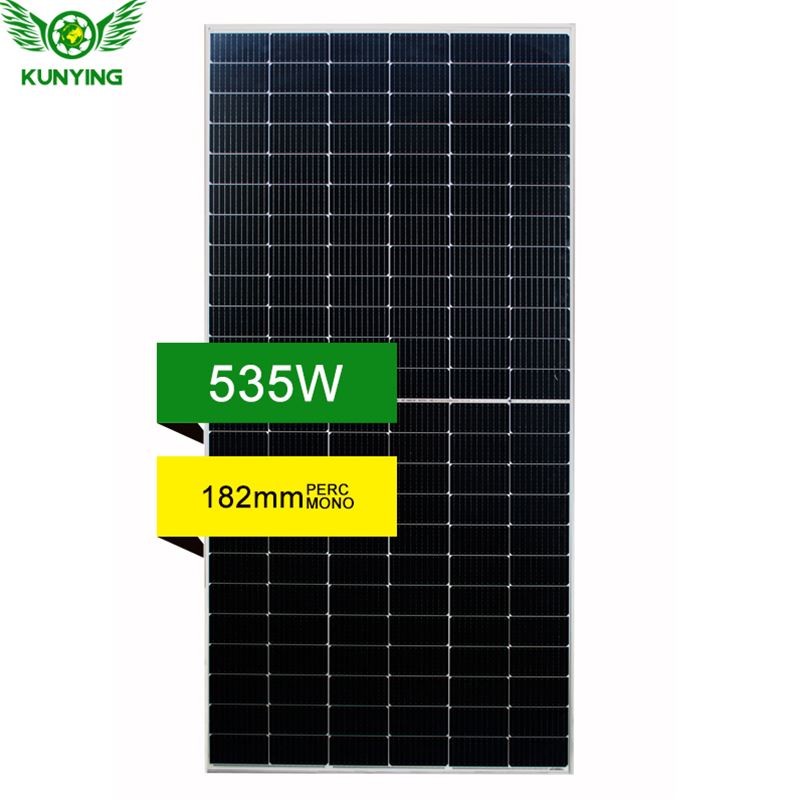

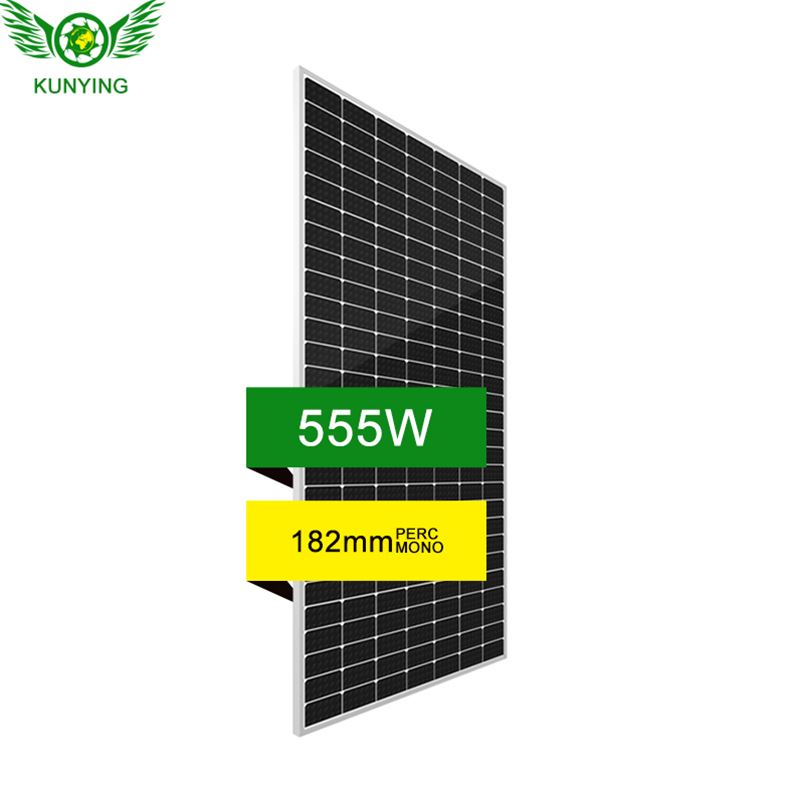

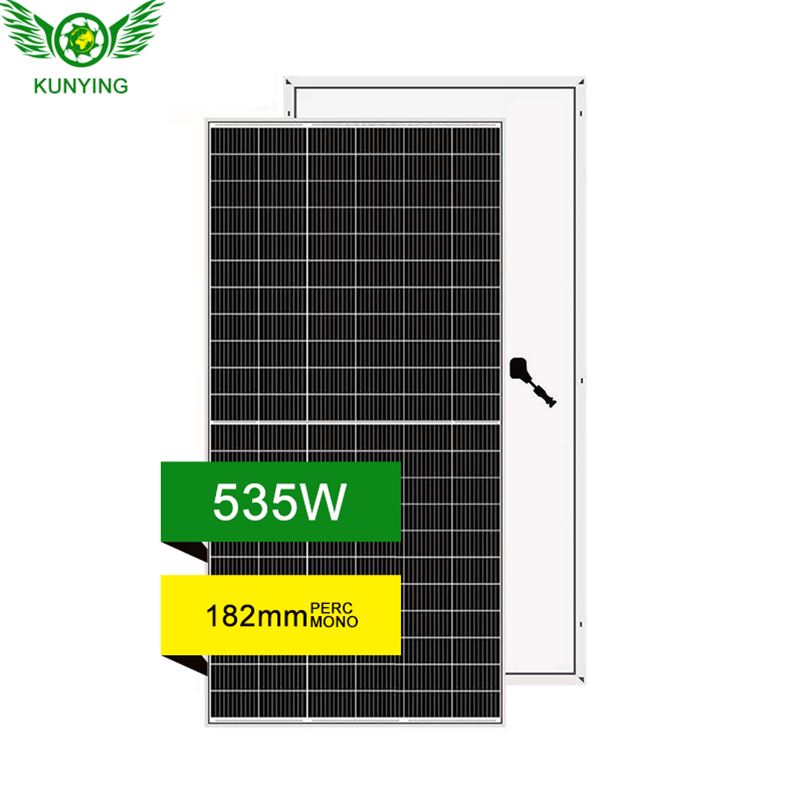

| Cell Type : | PERC Mono Crystalline |
| Solar Cell : | 182mm |
| Number Of Cells : | 144pcs (2×(6×12)) |
| Power Range : | 535w-555w |
| Size : | 2278×1134×30mm |
| Weight : | 31.0kg |
| Lead Time : | 7-15 Days |

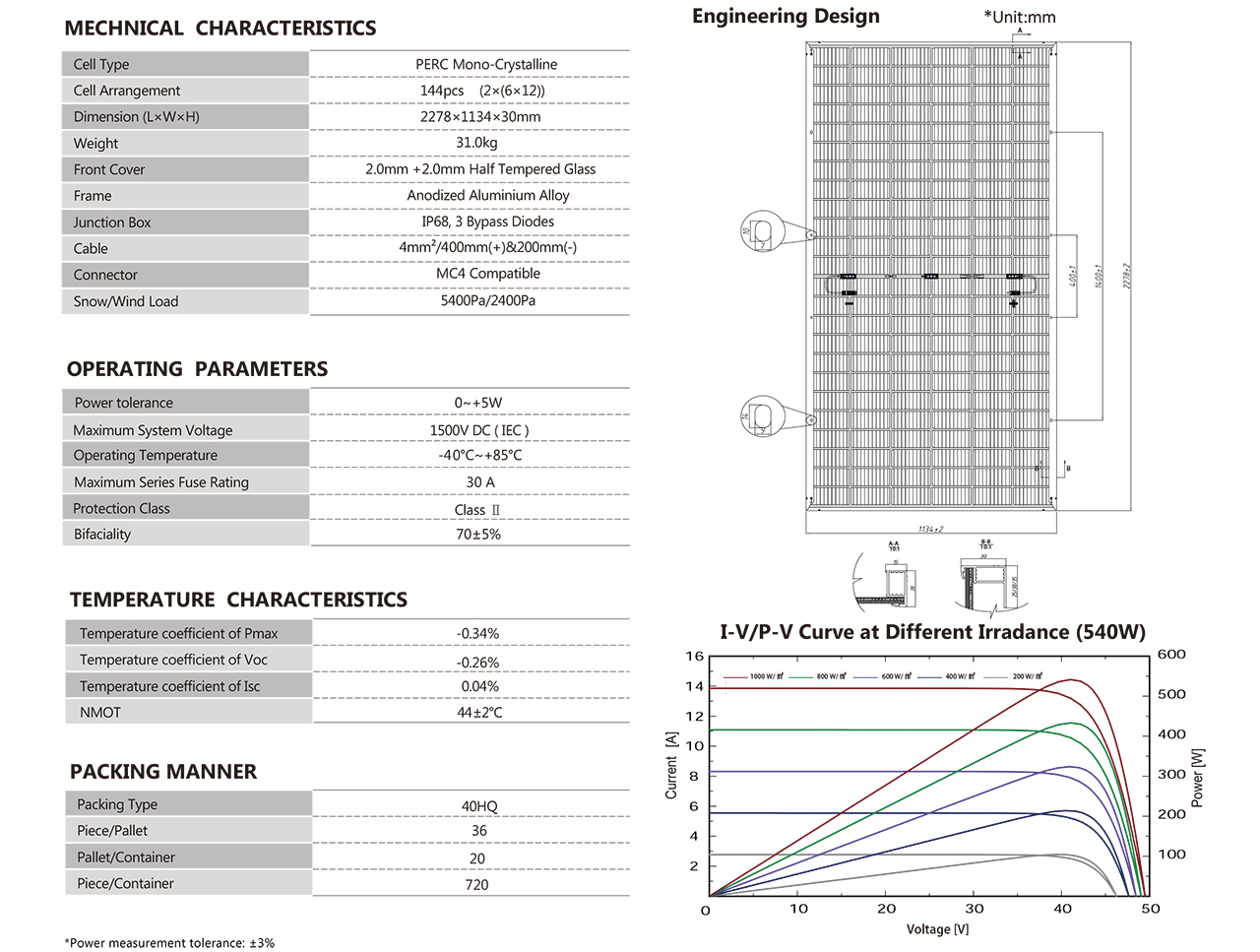

ELECTRICAL CHARACTERISTICS

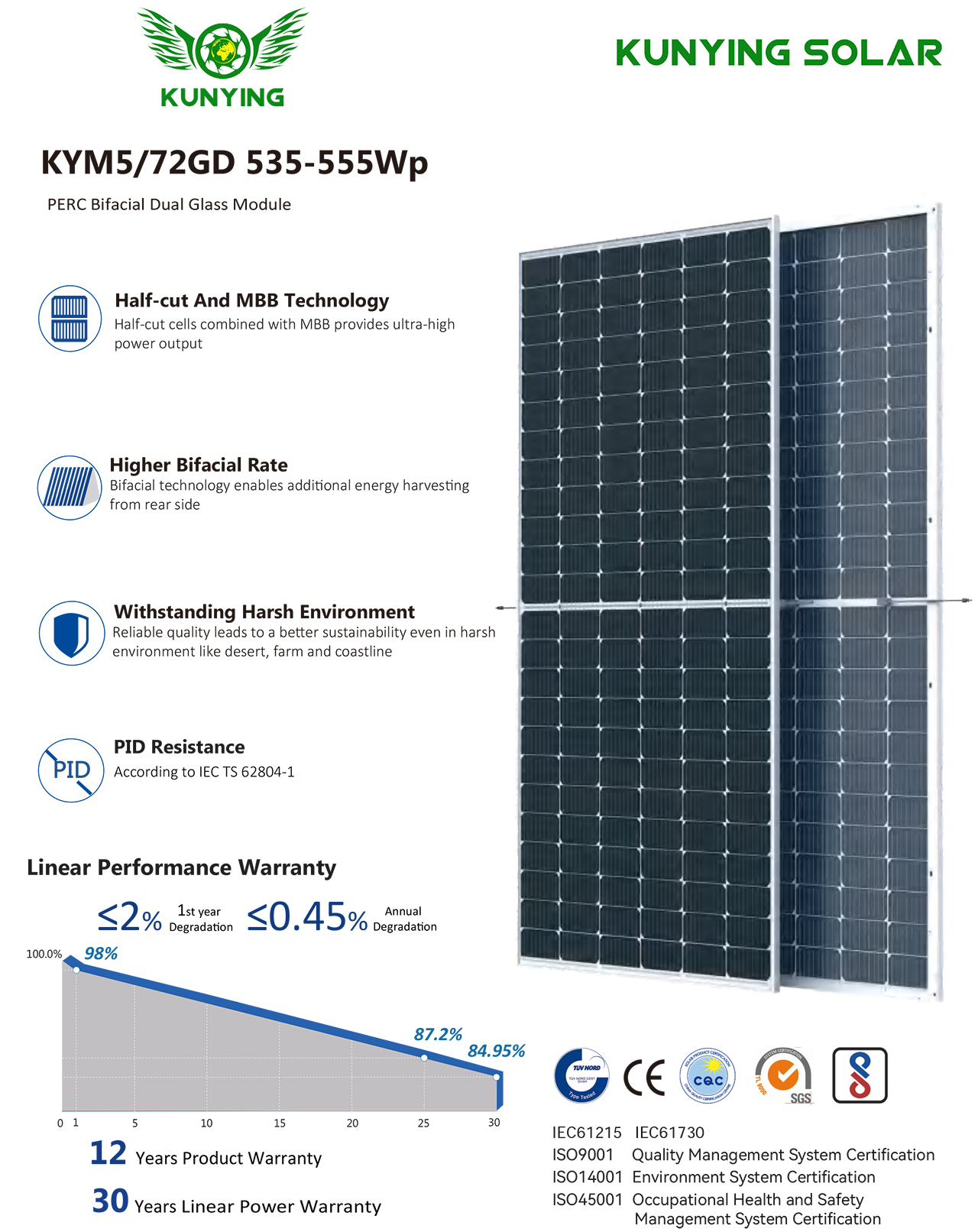

| Module Type | KYM5/72GD535 | KYM5/72GD540 | KYM5/72GD545 | KYM5/72GD550 | KYM5/72GD555 | |||||
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Peak Power (Pmax) (W) | 535 | 396 | 540 | 400 | 545 | 404 | 550 | 408 | 555 | 412 |
| Maximum Power Voltage (Vmp) (V) | 41.6 | 37.6 | 41.8 | 37.7 | 42.0 | 37.8 | 42.2 | 38.0 | 42.4 | 38.2 |
| Maximum Power Current (Imp) (A) | 12.86 | 10.55 | 12.92 | 10.62 | 12.98 | 10.68 | 13.04 | 10.75 | 13.10 | 10.78 |
| Open-circuit Voltage (Voc) (V) | 49.4 | 45.7 | 49.5 | 45.8 | 49.6 | 45.9 | 49.7 | 46.0 | 49.8 | 46.1 |
| Short-circuit Current (ISC) (A) | 13.79 | 11.16 | 13.86 | 11.22 | 13.93 | 11.28 | 14.00 | 11.33 | 14.07 | 11.37 |
| Module Efficiency | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% | |||||
*STC (Standard Test Condion): Irradiance 1000W/㎡, Cell Temperature 25℃, AM 1.5
*NMOT(Under Nominal Module Operating Temperature): Irradiance of 800W/ ㎡ , Spectrum AM 1.5, Ambient Temperature 20℃, Wind Speed 1m/s

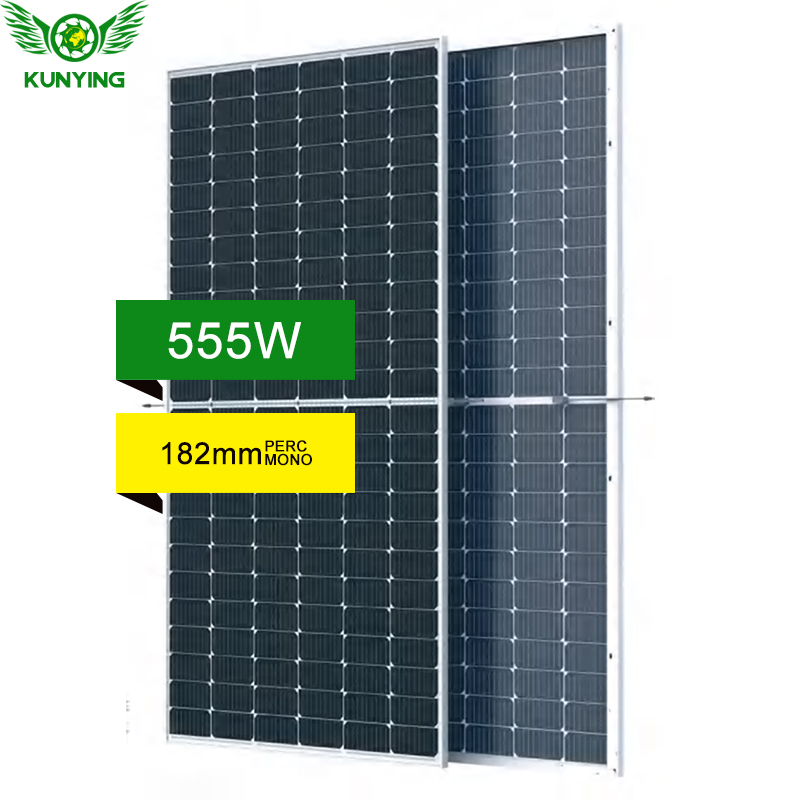

Rearside Power Gain (Reference to KYM5/72GD540)
| Rearside Power gain | 5% | 10% | 15% | 20% | 25% |
| Peak Power (Pmax) (W) | 567 | 594 | 621 | 648 | 675 |
Maximum Power Voltage (Vmp) (V) | 41.8 | 41.8 | 41.8 | 41.9 | 41.9 |
| Maximum Power Current (Imp) (A) | 13.56 | 14.21 | 14.86 | 15.47 | 16.11 |
| Open-circuit Voltage (Voc) (V) | 49.5 | 49.5 | 49.5 | 49.6 | 49.6 |
| Short-circuit Current (Isc) (A) | 14.55 | 15.24 | 15.93 | 16.59 | 17.28 |
