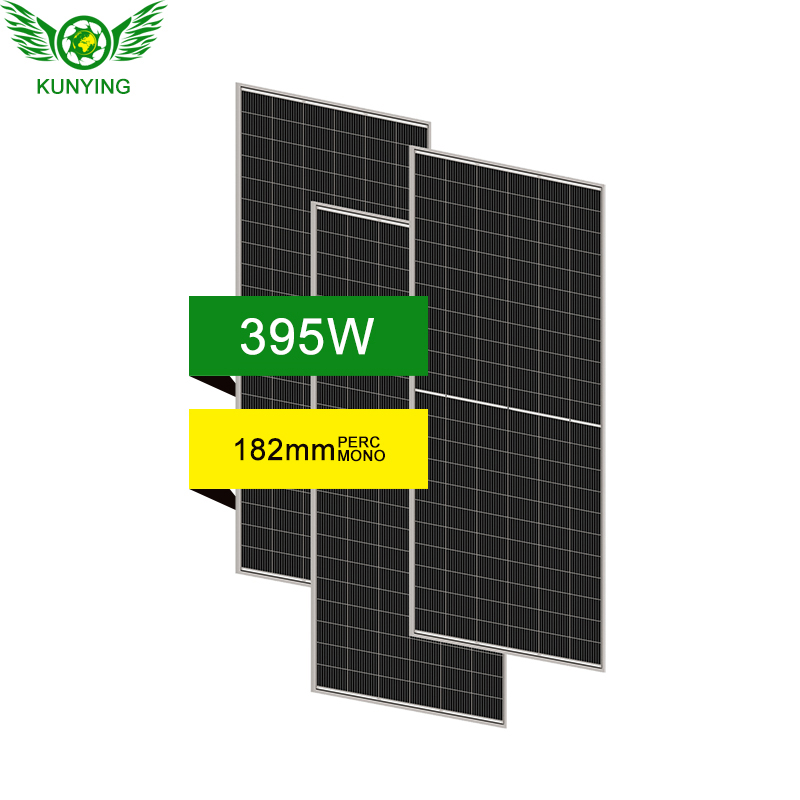

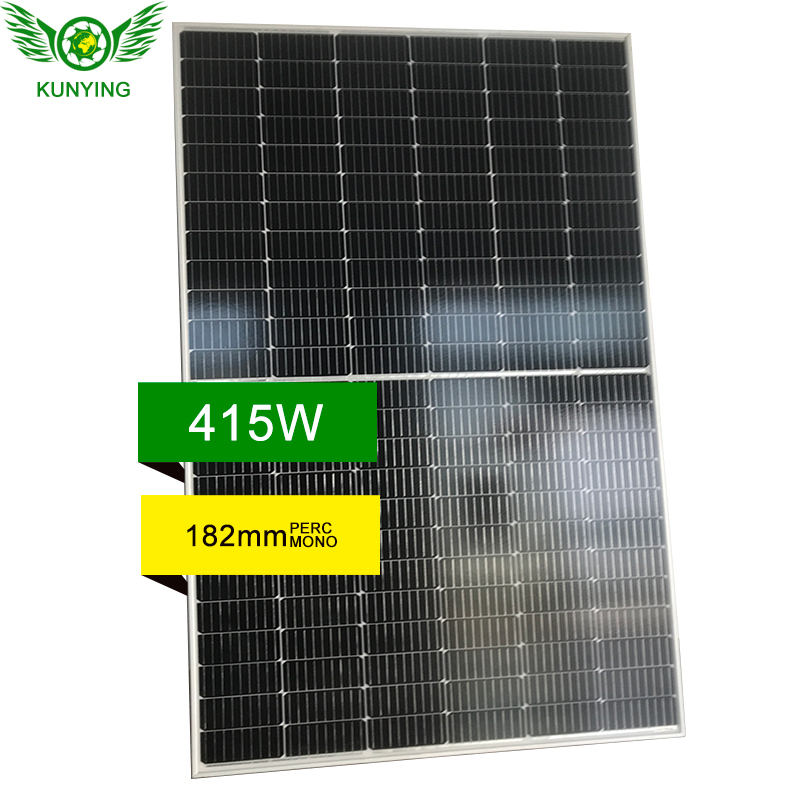

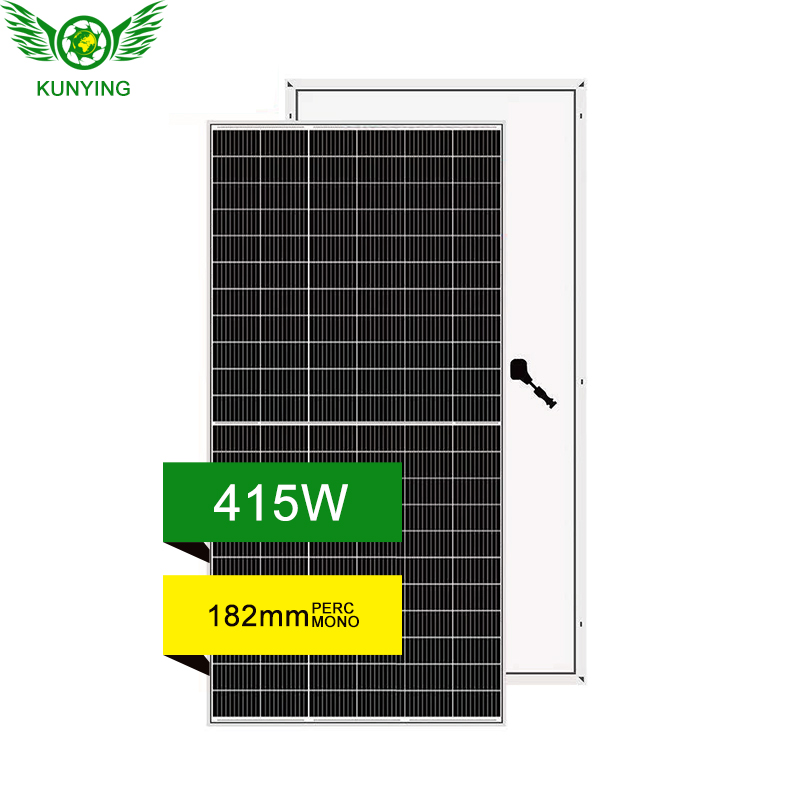

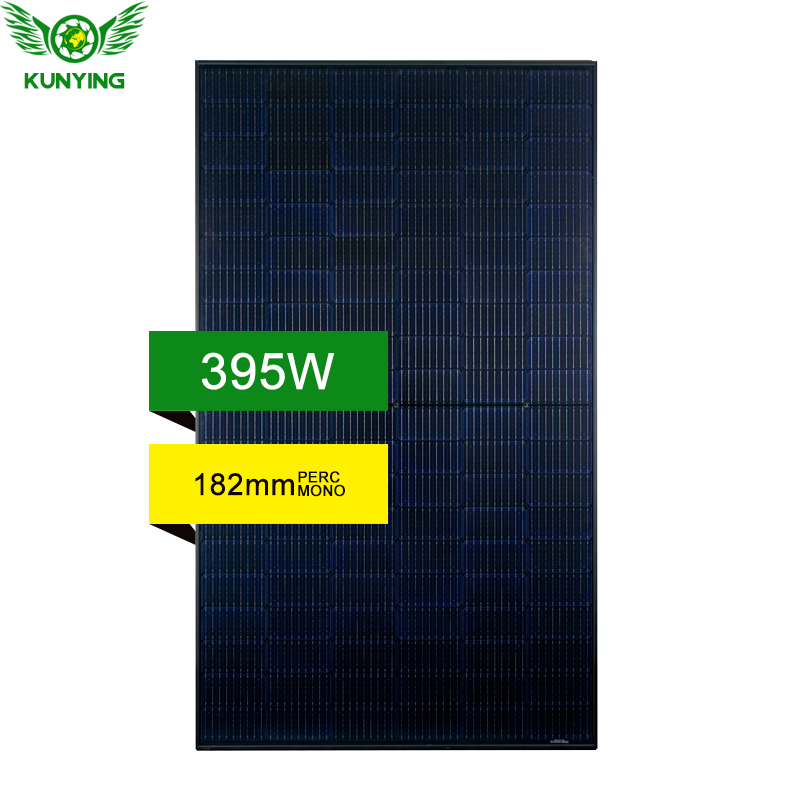

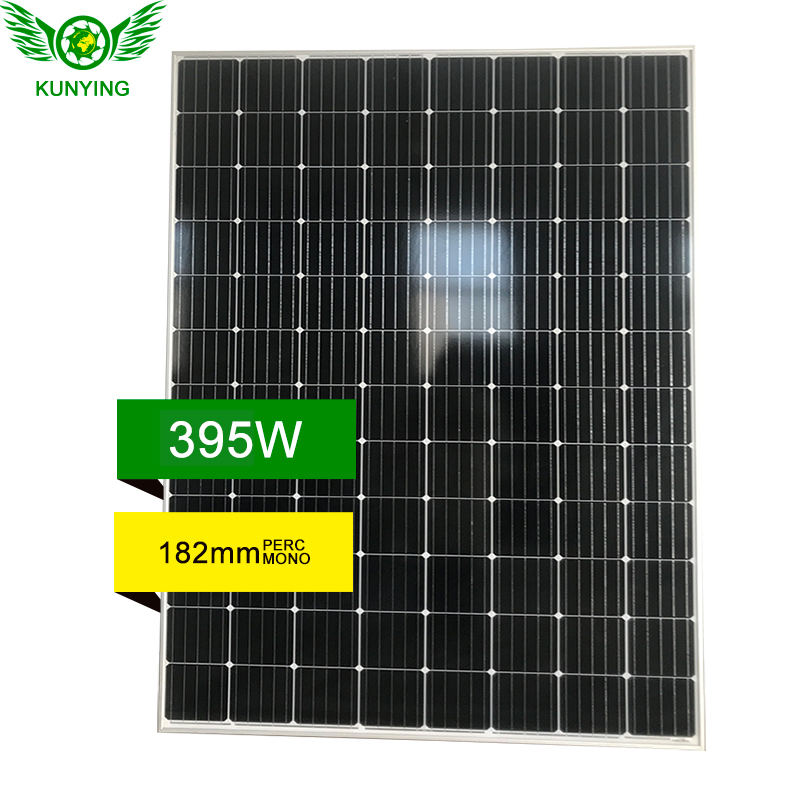

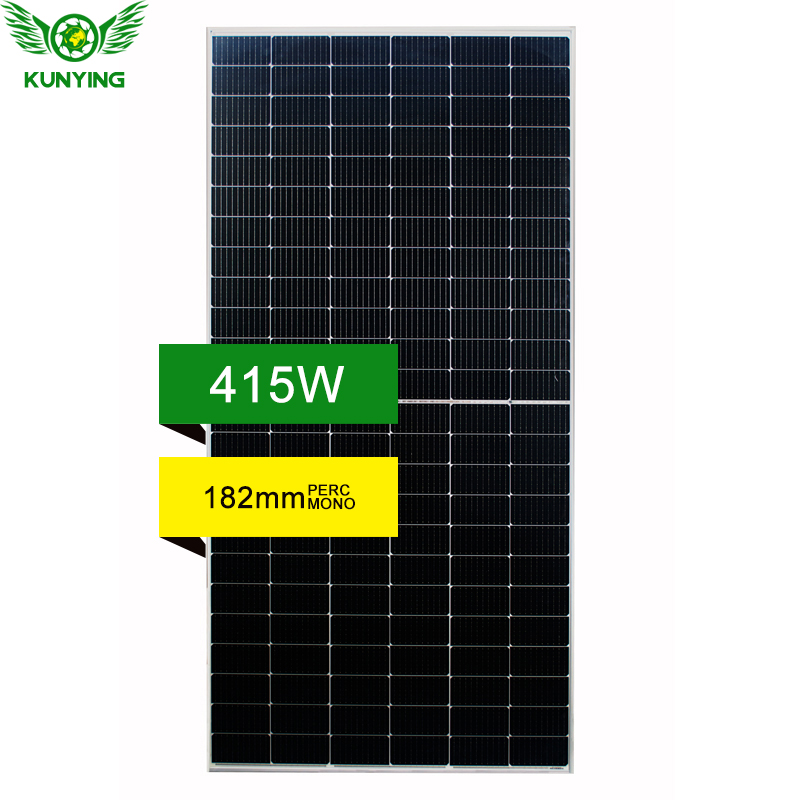

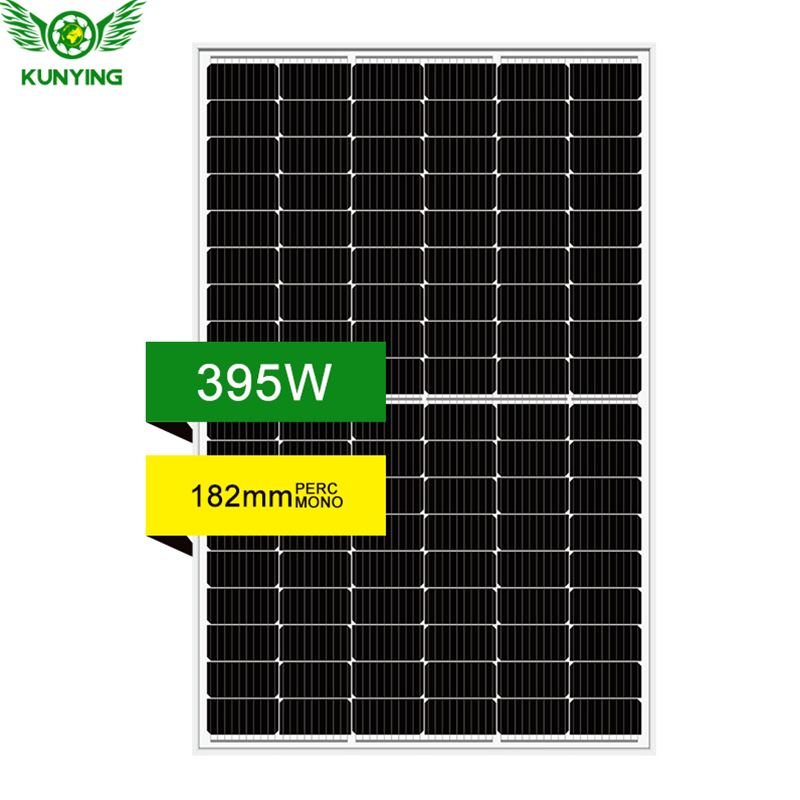

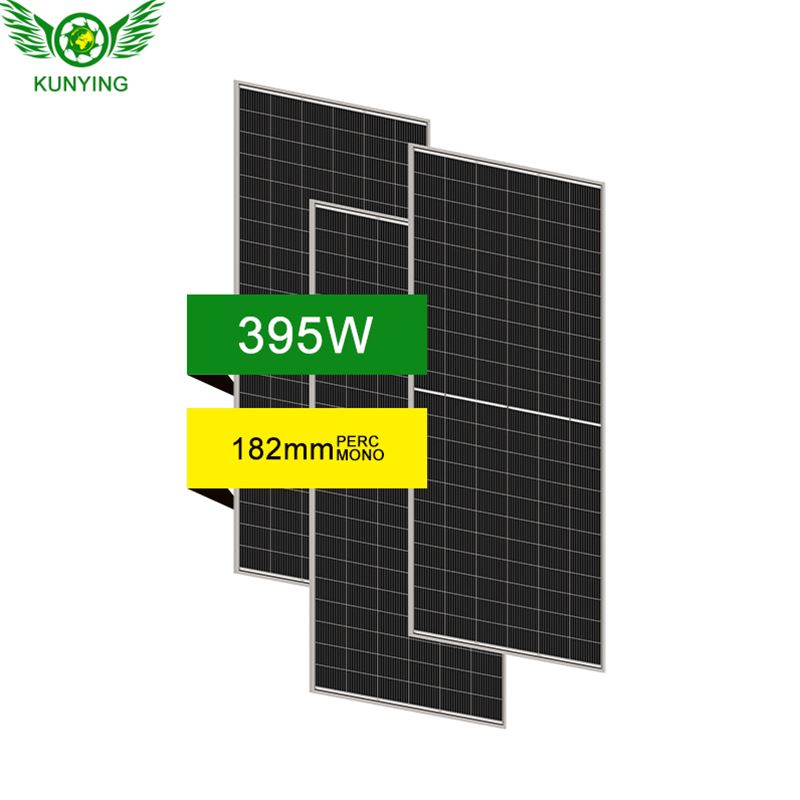

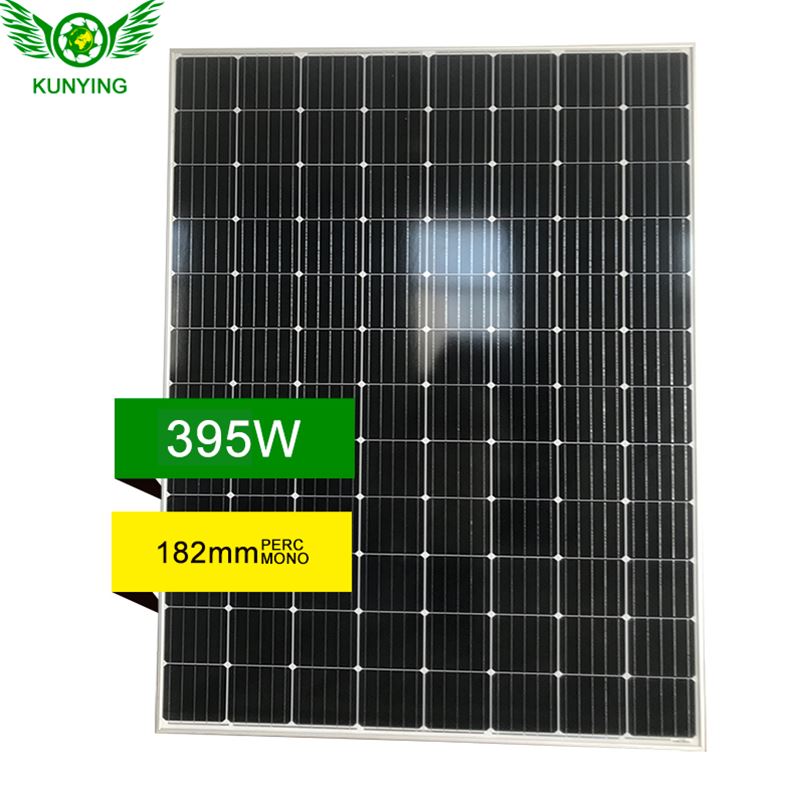

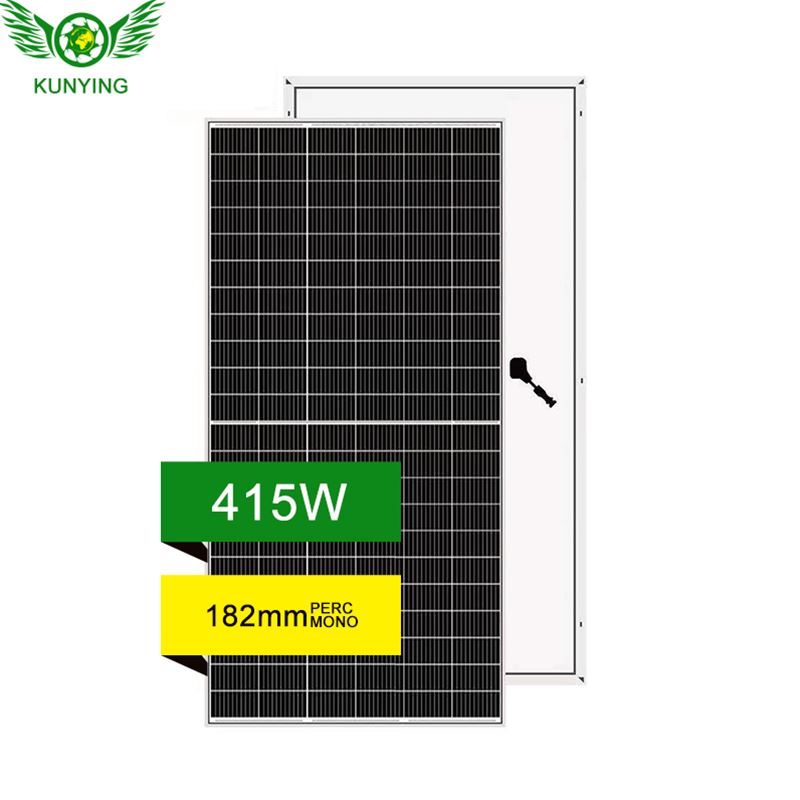

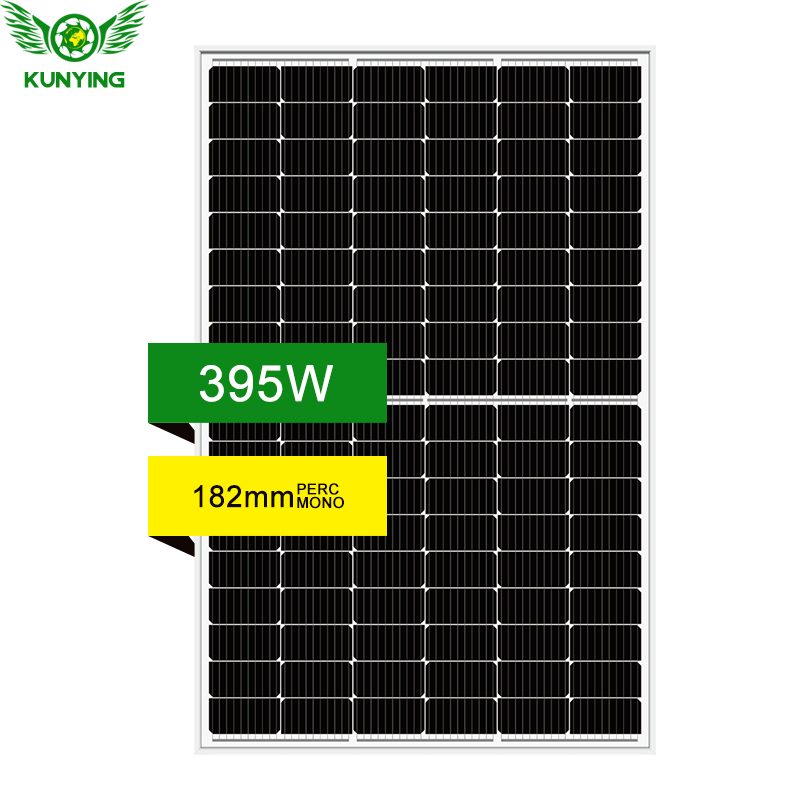

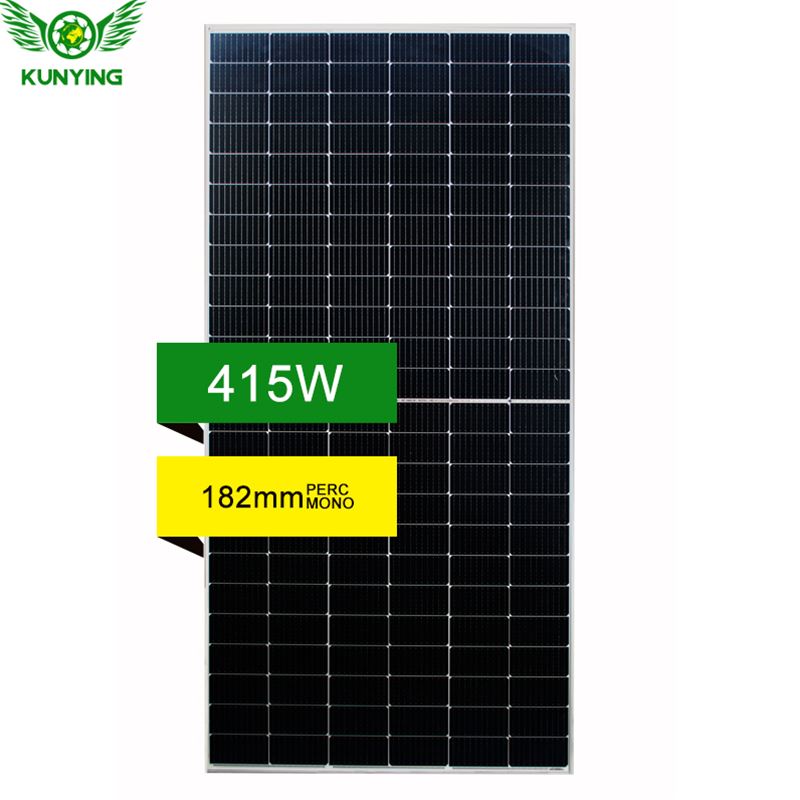

| Cell Type : | PERC Mono Crystalline |
| Solar Cell : | 182mm |
| Number Of Cells : | 108pcs ( 2×(6×9)) |
| Power Range : | 395w-415w |
| Size : | 1722×1134×30mm |
| Weight : | 22.0kg |
| Lead Time : | 7-15 Days |
ELECTRICAL CHARACTERISTICS
| Module Type | KYM5/54GD395 | KYM5/54GD400 | KYM5/54GD405 | KYM5/54GD410 | KYM5/54GD415 | |||||
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Peak Power (Pmax) (W) | 535 | 396 | 540 | 400 | 545 | 404 | 550 | 408 | 555 | 412 |
| Maximum Power Voltage (Vmp) (V) | 41.6 | 37.6 | 41.8 | 37.7 | 42.0 | 37.8 | 42.2 | 38.0 | 42.4 | 38.2 |
| Maximum Power Current (Imp) (A) | 12.86 | 10.55 | 12.92 | 10.62 | 12.98 | 10.68 | 13.03 | 10.75 | 13.10 | 10.78 |
| Open-circuit Voltage (Voc) (V) | 49.4 | 45.7 | 49.5 | 45.8 | 49.6 | 45.9 | 49.7 | 46.0 | 49.8 | 46.1 |
| Short-circuit Current (ISC) (A) | 13.79 | 11.16 | 13.86 | 11.22 | 13.93 | 11.28 | 14.00 | 11.33 | 14.07 | 11.37 |
| Module Efficiency | 20.70% | 20.89% | 21.10% | 21.29% | 21.48% | |||||
*STC (Standard Test Condion): Irradiance 1000W/㎡, Cell Temperature 25℃, AM 1.5
*NMOT(Under Nominal Module Operating Temperature): Irradiance of 800W/ ㎡ , Spectrum AM 1.5, Ambient Temperature 20℃, Wind Speed 1m/s

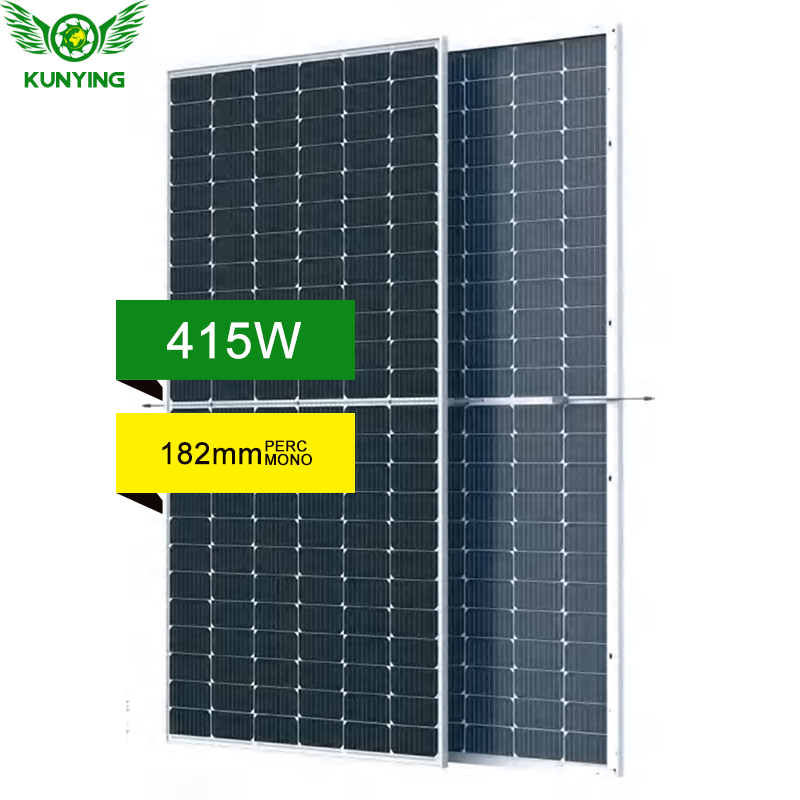

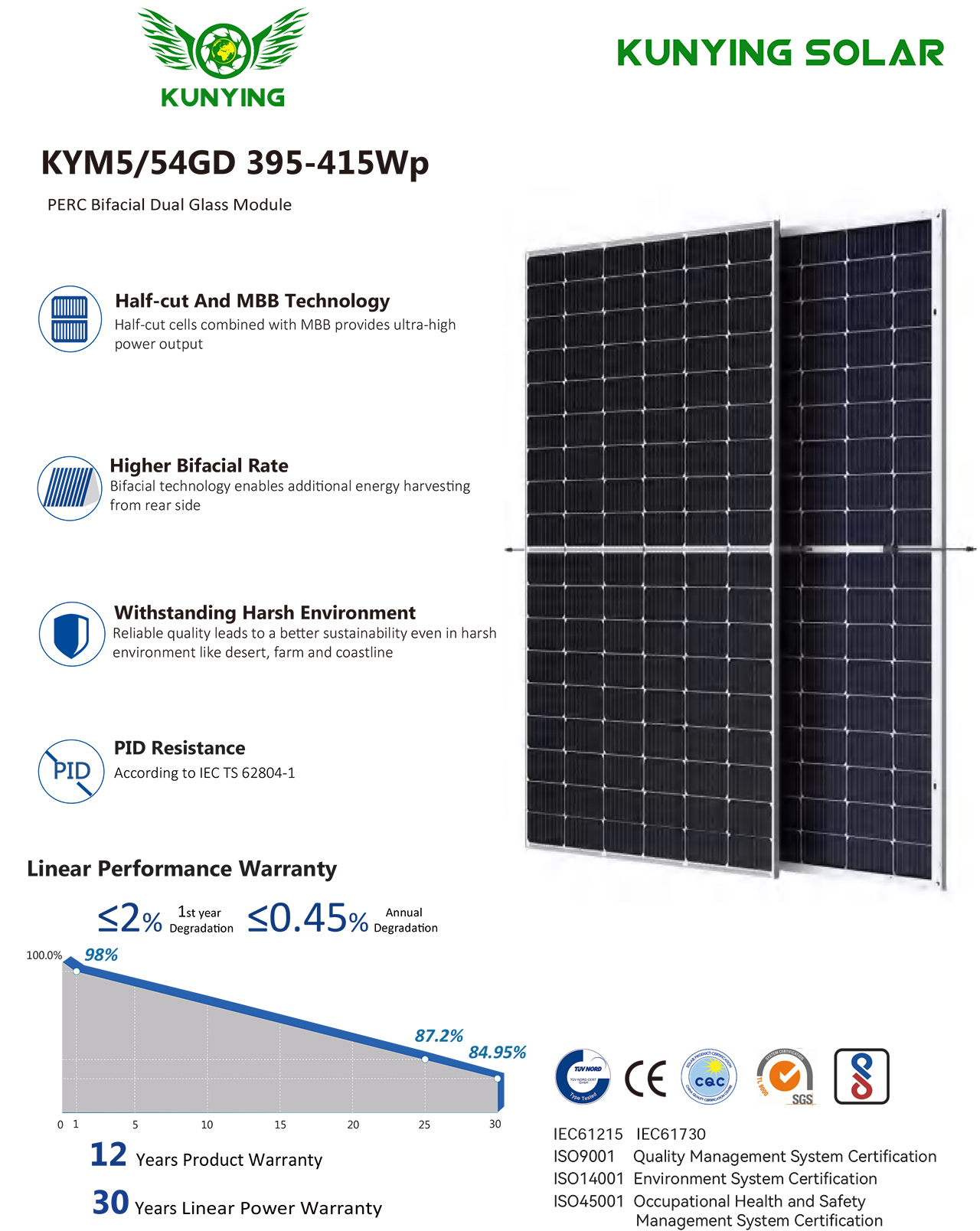

Rearside Power Gain (Reference to KYM5/54GD405)
| Rearside Power gain | 5% | 10% | 15% | 20% | 25% |
| Peak Power (Pmax) (W) | 425 | 446 | 466 | 486 | 506 |
Maximum Power Voltage (Vmp) (V) | 31.1 | 31.1 | 31.1 | 31.2 | 31.2 |
| Maximum Power Current (Imp) (A) | 13.67 | 14.32 | 14.98 | 15.58 | 16.23 |
| Open-circuit Voltage (Voc) (V) | 37.5 | 37.5 | 37.5 | 37.6 | 37.6 |
| Short-circuit Current (Isc) (A) | 14.62 | 15.32 | 16.01 | 16.66 | 17.35 |
